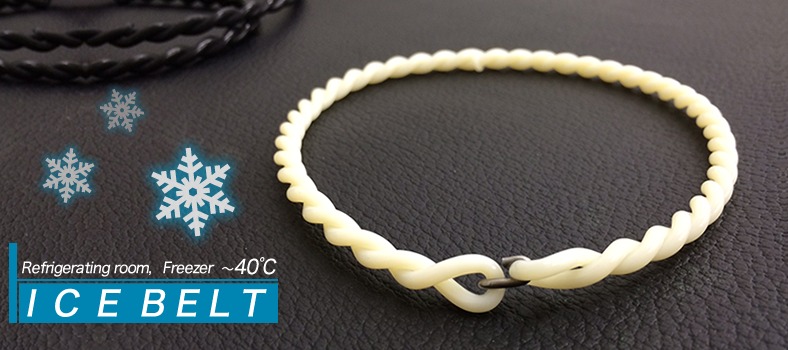

WHAT'S ICE BELT?
"Iced belt" is frozen correspondence can withstand up to -40 ℃.
It's can be used in the freezer compartment that could not withstand the PC belt.
Ice belt is ideal for transport of frozen food line and cooling and freezing process.
- Frozen, refrigerated vault
- Cooling, transport of freezing process
- Food production line (FDA correspondence)
Size : 303L, 336L, 368L
COLOR : Ivory
Ice belt adaptation size
Total length absolute size (unused round belt) is the alternative size.
Among the standard size three, closer length will be fit the size of the ice belt.
ice belt is growth rate around 5%, it can be used in a range of about ± 5mm.
ICEBELT Property
| ICE BELT | |
|---|---|
| SIZE | 303mm 336mm 368mm |
| Diameter | 5mm |
| Hardness"A"Scale ISO868 |
92+/-3 |
| PSI ISO527 |
4,400 |
| PSI@5% PSI@10% ISO527 |
400 600 |
| Lb/in ISO34-1 |
560 |
| Adaptive temperature | -40℃～+93.3℃ |
| Component | Copolyester |
| Adaptive point |
|
| Properties | There is alow-temperature characteristicsto withstandup to-40 ℃,alsowide range ofchemicalsin theurethanecould not bear. Alsofor outdoor useis also possible. |
Manufacturers internal test results data
